Analysis of Deep RL, Traditional RL and PID Control for Assistive Walker and CartPole Systems

Overview

Github repo

This repository provides a unified research platform for benchmarking classical and modern control strategies — including PID, Q-Learning, PPO, SAC, and DDPG — on two custom robotic systems: an Assistive Walker and a CartPole.
Both systems are modeled using URDF for realistic physics and simulated in PyBullet, with custom Gymnasium environments for reinforcement learning research.

Table of Contents

• Project Objectives

• System Architecture

• Assistive Walker

• Cart-Pole

• Custom Environment Creation

• Control Algorithms

• Training & Evaluation Pipeline

• How to Run

• File Structure

• Research Insights

• References

• License

Project Objectives

• Develop custom URDF models for both systems, capturing realistic mechanical properties.

• Implement Gymnasium-compatible environments using PyBullet for physics simulation.

• Train and benchmark PID, Q-Learning, PPO, SAC, and DDPG controllers.

• Compare performance using metrics such as episode length, cumulative reward, and stability.

• Analyze strengths and limitations of each control strategy for both robots.

System Architecture

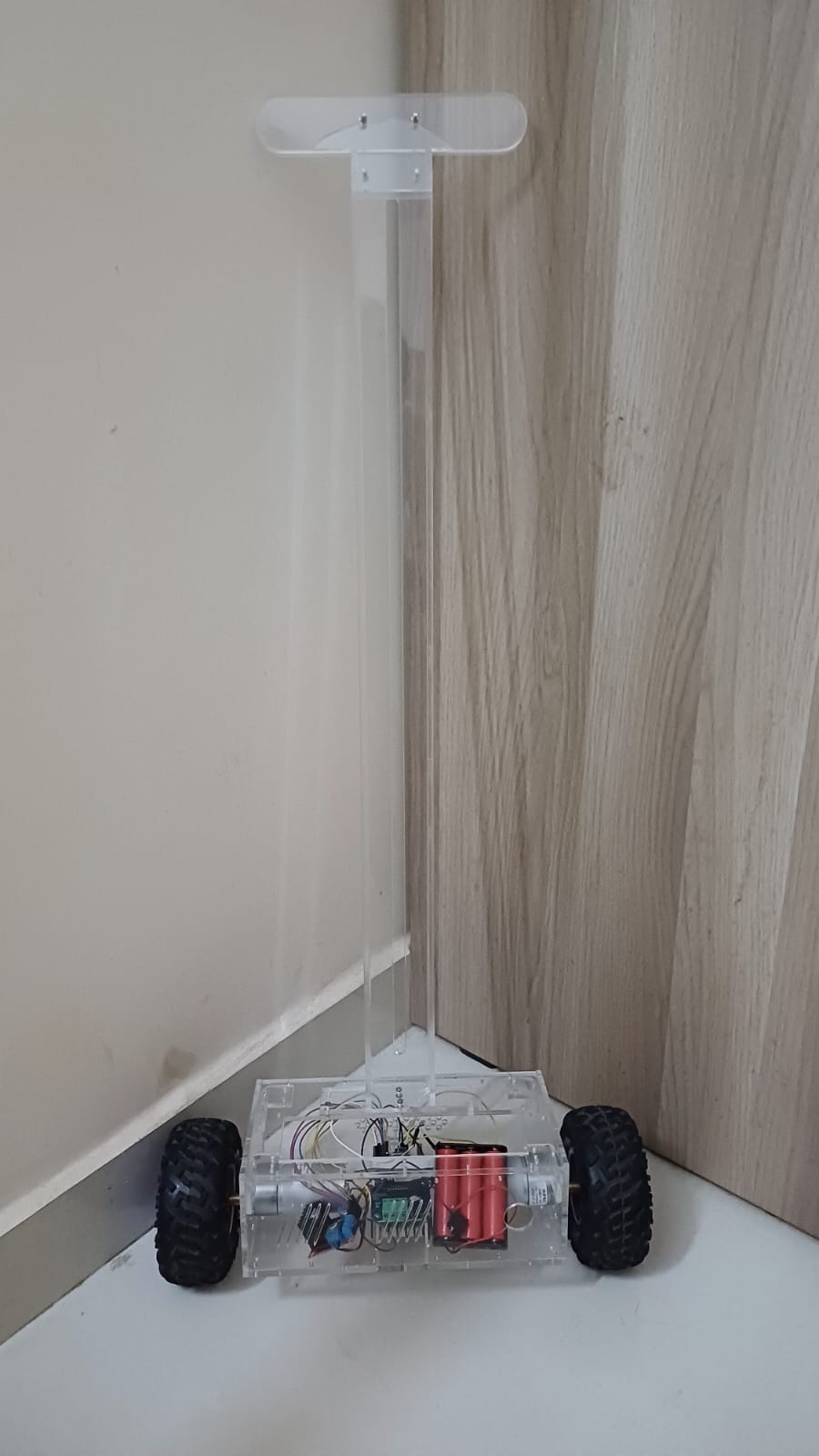

Assistive Walker

Description:
A differential-drive walker with two powered wheels, an assistive handle (pole), and a simulated IMU sensor. Designed for research in stabilization, navigation, and user-adaptive control.

URDF Highlights:

• Base: Rigid box (4.0 kg), realistic inertia.

• Wheels: Two, each 0.8 kg, high friction for realistic drive.

• Pole: 1.2 kg, 1.0 m, revolute joint for handle dynamics.

• IMU: Simulated MPU6050 providing orientation, angular velocity, and linear acceleration.

Environment:

• Observation: Pole angle/velocity, base pose, wheel velocities, IMU data.

• Action:

  • Discrete → {left, right, stop}

  • Continuous → [left_wheel_torque, right_wheel_torque]

• Reward: Penalizes pole deviation, displacement, and excessive wheel velocity.

• Termination: Pole falls or walker moves out of bounds.

CartPole

Description:
A classic inverted pendulum system with a sliding cart and pole, implemented with a custom URDF for realistic simulation.

URDF Highlights:

• Track: Fixed, 30×0.05×0.05 m (visual only).

• Cart: 0.5×0.5×0.2 m, 4 kg, prismatic joint for horizontal motion.

• Pole: 1 m, 1 kg, continuous joint for rotation.

• Friction/Damping: Realistic values for both cart and pole for stable physics.

Environment:

• Observation: Cart position/velocity, pole angle/velocity.

• Action:

  • Discrete → {left, right}

  • Continuous → Apply force/torque to cart.

• Reward: +1 per step pole remains balanced.

• Termination: Pole falls or cart moves off track.

Custom Environment Creation

Both environments are implemented as Python classes inheriting from gymnasium.Env.

Key Steps

1. URDF Modeling: Define robot structure and joints.

2. PyBullet Integration: Load URDF, set up physics simulation.

3. Observation & Action Spaces: Define what the agent sees and controls.

4. Reward & Episode Logic: Specify how agents are scored and when episodes end.

5. Registration: Register with Gymnasium for use in RL pipelines.

Example Usage

# Assistive Walker (Continuous)
from environments.walker import AssistiveWalkerContinuousEnv
env = AssistiveWalkerContinuousEnv()
obs = env.reset()
done = False
while not done:
    action = env.action_space.sample()
    obs, reward, done, truncated, info = env.step(action)
env.close()

# CartPole (Continuous)
from environments.cartpole import CartPoleContinuousEnv
env = CartPoleContinuousEnv()
obs = env.reset()
done = False
while not done:
    action = env.action_space.sample()
    obs, reward, done, truncated, info = env.step(action)
env.close()

Control Algorithms

All RL algorithms are trained and evaluated using Stable Baselines3, with custom wrappers for noise and logging.

Training & Evaluation Pipeline

1. Configure environment → choose robot and action space.

2. Select algorithm → PID, Q-Learning, PPO, SAC, or DDPG.

3. Train → run training loop with chosen hyperparameters.

4. Evaluate → test trained policy, collect metrics (reward, episode length, stability).

5. Analyze → compare across algorithms and environments for insights.

Example PPO Config:

policy: MlpPolicy
learning_rate: 0.0003
gamma: 0.99
batch_size: 64
n_steps: 2048
total_timesteps: 1000000
action_noise: 0.1
wandb_project: assistive-walker-ppo

How to Run

1. Install Dependencies

pip install gymnasium pybullet stable-baselines3 wandb

2. Train PPO on Assistive Walker

python train/ppo_trainer.py --config configs/ppo_config.yaml

3. Train PPO on CartPole

python train/ppo_trainer.py --config configs/cartpole_ppo_config.yaml

4. Monitor Training
   Use Weights & Biases for live logging and visualization.

File Structure

urdf/
  walker.urdf
  cartpole.urdf
environments/
  walker.py
  cartpole.py
train/
  basetrainer.py
  ppo_trainer.py
  utils/
    callbacks.py
    logger.py
    configloader.py
configs/
  ppo_config.yaml
  cartpole_ppo_config.yaml
README.txt

Research Insights

• PID: Fast, interpretable, but limited adaptability to nonlinearities and disturbances.

• Q-Learning: Effective for simple, discrete tasks; doesn’t scale well to high-dimensional or continuous domains.

• Deep RL (PPO, SAC, DDPG): Superior in complex, noisy, continuous environments; robust to varied initial conditions.

• IMU Integration (Walker): Improves state estimation and reward shaping for robustness.

• Realistic Physics (URDF + PyBullet): Ensures learned policies are physically plausible and transferable.

License

Licensed under the MIT License.

Contact

For technical questions or collaboration, open an issue or contact the maintainers.
